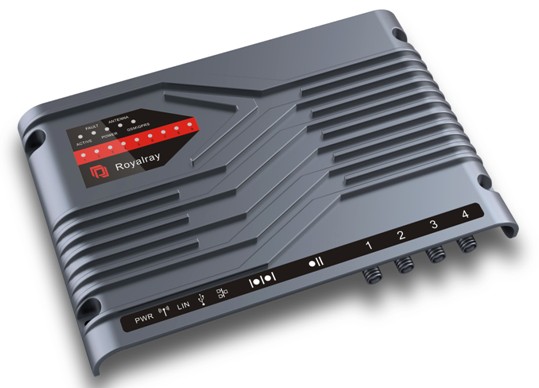

UHF four port reader race timing
描述
- Designed with Impinj R2000 RFID engine;
- Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
- 860~868MHz/902~928MHz frequency band(frequency customization optional);
- FHSS or Fix Frequency transmission;
- RF output power up to 30dbm(adjustable);
- 4 TNC antenna port with antenna auto-tuning and failure-detection;
- Support auto-running, answer, trigger and real-time-inventory work mode;
- Tag buffer size up to 800PCS (Max. 496bits EPClength);
- Support EPC and TID inventory;
- Low power dissipation with single +9 DC power supply;
- Support RS232, RS485, RJ45(TCPIP) with WiFi and POE optional;
- High reliability design;
- Size :310mm×210mm×41mm
